Replace the 5800/5900 Air Filter

5800/5900 ICP-OES systems only

This video demonstrates how to replace the air filter.

To replace the 5800/5900 ICP-OES air filter:

  1. Turn off the instrument.
  2. Pull the cartridge out of the instrument.

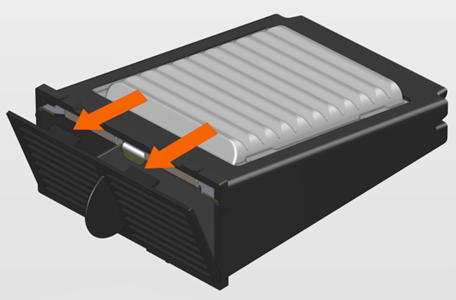

  3. Lift the two tabs on the cartridge up and then open the cartridge cover.

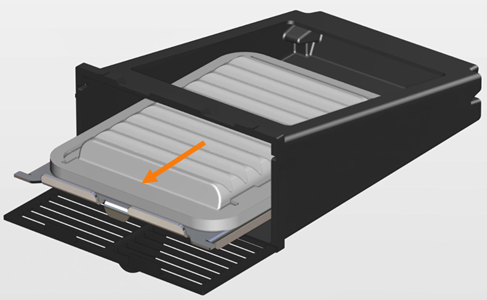

  1. Pull the bracket out of the cartridge.

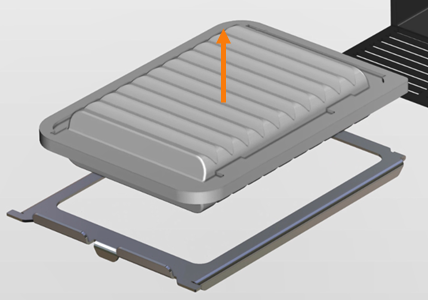

  1. Remove and dispose of the used filter according to local regulations.

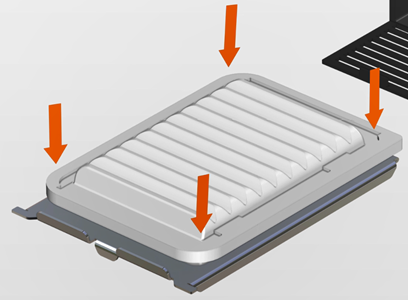

  1. Push the new filter securely into the bracket.

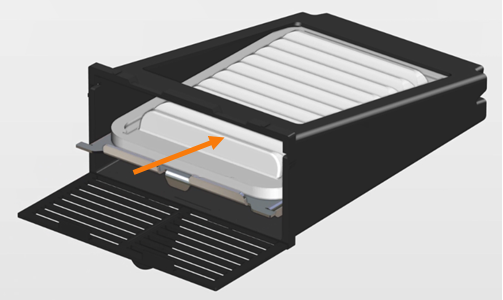

  1. Slide the bracket into the cartridge with the filter side facing the large side opening.

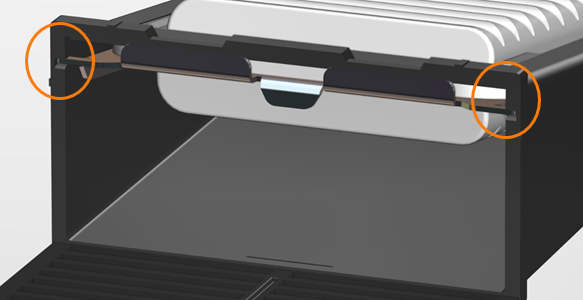

  1. Slide the two bracket tabs into the cutouts on the cartridge.

  1. Close the cartridge cover.
  2. Fully insert the cartridge into the instrument with the filter side facing the back of the instrument.



Before using the instrument:

  1. Turn on the external exhaust (if off).
  2. Turn on the instrument and gas supply.
  3. Purge the instrument for at least 60 minutes.
