SPS 3 Sample Preparation System

The Sample Preparation System (SPS) allows unattended operation of the ICP-OES and is compatible with a wide range of commercially available low‑cost autoclavable sample racks.

For safety information and to prepare the SPS 3 for installation, please see the instructions that came with the accessory.

To connect the SPS 3 to the ICP-OES:

1. Remove the panel on the right side of the ICP-OES by holding the panel at the rear and pulling it to the right, freeing it from the retaining clips at the rear.
2. Connect the RS232 cable supplied with the SPS 3 autosampler into the port indicated in the figure below on the ICP-OES.

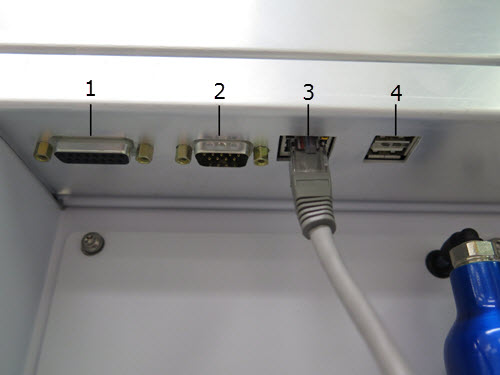

   Figure  1. Input and output connections on the side of the ICP-OES

   Where:

	Item	Description
1	Accessory port	DA-15 receptacle For connection of Agilent-specified accessories only
2	Autosampler port	DE-9 plug. RS-232 port for connection of an autosampler
3	Ethernet	Communication cable to the PC
4	USB port	USB type B receptacle. Supports USB 2.0 Full Speed For connection of Agilent-specified accessories only

3. Connect the tubing from the SPS 3 to the solution inlet line on the peristaltic pump.

For autosamplers other than the Agilent SPS 3 and SPS 4 it is not always possible for ICP Expert to detect when the autosampler has gone out of alignment. Therefore it is not always possible for a run to be stopped in this situation.
