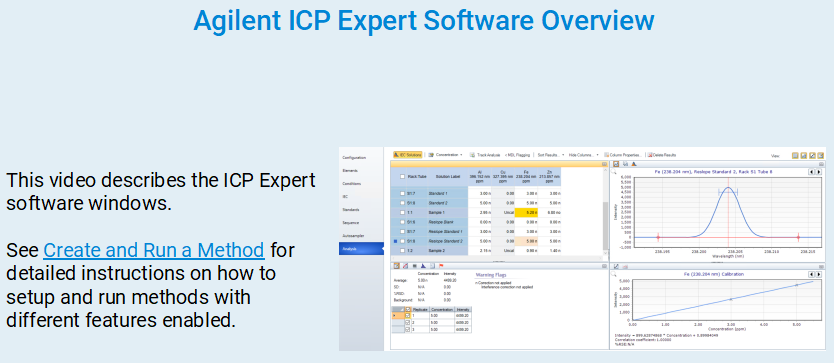

ICP Expert Software Overview

Learn about the software features and navigation.

This video describes the following pages in ICP Expert. For details about actions that can be performed on each page, after viewing the video above, click the links below.

• About the Start page
• Configuration page - Enable worksheet options
• Elements page - Select and setup elements
• Conditions page - Setup Analysis Conditions
• IEC page - Setup and run a method with IEC
• Standards page - Enable and configure standards options
• QC page - Setup a method with QC tests, expanded QC, and expanded QC with USP and ICH support
• Sequence page - Setup the Sequence and QC tests
• FACT page - Setup a method with FACT background correction and create and view FACT libraries
• Autosampler page - Enable and configure the autosampler
• Analysis page
• IntelliQuant Analysis and Screening Methods

Click here for information on IntelliQuant and here for information about Autodilution.

ICP Expert Base and ICP Expert Pro

The ICP Expert Base pack version is used for ICP-OES setup and routine operation. The ICP Expert Pro pack provides additional features for instrument productivity and performance, including the following:

• Rate driven QC: automatically run QC solutions after  a defined number of samples
• IntelliQuant Screening including Snapshot mode for  quick sample insight
• Export to Microsoft Excel (Excel not provided)
• Support for 3rd party autosamplers such as Cetac Oil 7400, 7600, ASX520, 560, 1400 and 1600 and EXR8, ESI SC_2,4,8,14 and Micro and AIM 1250 and 360
• Control of selected third-party autosamplers
• Trend monitoring of argon back-pressure to the nebulizer, and argon emission per solution
• Oxygen addition and nitrogen purge
• Control of the Advanced Valve System switching valve accessory (AVS 6 or 7)
• Integrated control of the Advanced Dilution System 2 (ADS 2), ESI prepFAST autodilution system and SampleSense switching valve
• Intelligent Rinse
• Ability to customize replicate counts for different  solution types
